Products >> Control Valves >>

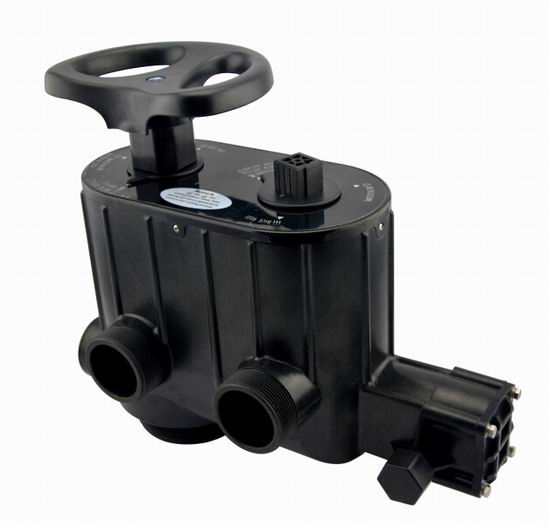

Filter Valve
- Product No.:51215 (F77BS)
Technical Parameters:
●Water Pressure----------------------------------------------0.2—0.6MPa
●Water Temperature-----------------------------------------5℃-45℃
●Water Turbidity-----------------------------------------------<20FTU
●Inlet/Outlet-----------------------------------------------------2″M
●Drain------------------------------------------------------------2″M
●Base-------------------------------------------------------------4″-8UN
●Riser Pipe------------------------------------------------------1.5″D-GB
●Max Flow Rate-------------------------------------------------15 m3/h
●Suitable Tank Size (in)---------------------------------------10″~30″
Product Characteristics:
■It adopts hermetic head faces with high degree pottery and corrosion resistance for opening and closing.
■No water passes the valve in rinse in single tank type.
■Various ways of installation: it can be top mounted or side mounted .
Range of Application:
Residential filtration system
Swimming pool filtration equipment
Active carbon or sand filter in RO pretreatment filtration system
●Water Pressure----------------------------------------------0.2—0.6MPa
●Water Temperature-----------------------------------------5℃-45℃
●Water Turbidity-----------------------------------------------<20FTU
●Inlet/Outlet-----------------------------------------------------2″M
●Drain------------------------------------------------------------2″M
●Base-------------------------------------------------------------4″-8UN
●Riser Pipe------------------------------------------------------1.5″D-GB
●Max Flow Rate-------------------------------------------------15 m3/h
●Suitable Tank Size (in)---------------------------------------10″~30″
Product Characteristics:
■It adopts hermetic head faces with high degree pottery and corrosion resistance for opening and closing.
■No water passes the valve in rinse in single tank type.
■Various ways of installation: it can be top mounted or side mounted .
Range of Application:
Residential filtration system
Swimming pool filtration equipment
Active carbon or sand filter in RO pretreatment filtration system
