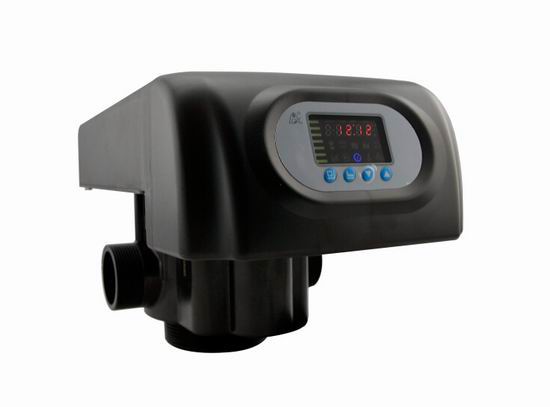

Filter Valve
- Product No.:53510 (F75A1)
Technical Parameters:
●Water Pressure------------------------------------------------0.15—0.6MPa
●Water Temperature-------------------------------------------5℃-50℃
●Transformer Output-------------------------------------------DC24V、1.5A
●Water Turbidity------------------------------------------------<20FTU
●Inlet/Outlet-------------------------------------------------------2″M
●Drain--------------------------------------------------------------2″M
●Base---------------------------------------------------------------4″-8UN
●Riser Pipe--------------------------------------------------------1.5 ″D-GB
●Max Flow Rate---------------------------------------------------10 m3/h
●Suitable Tank Size (in)-----------------------------------------16″~24″
Product Characteristics:
■It adopts hermetic head faces with high degree pottery and corrosion resistance for opening and closing.
■No water passes the valve in rinse in single tank type.
■LED dynamic screen display LED.The stripe on dynamic screen flash, it indicates the control valve is in service, otherwise, it is in rinse cycle.
■Having long outage indicator
■It could set up rinsing frequence
■There are two kinds of time clock types: by hours or by days
■Buttons are locked when no operation within 1 minute
■Having interlock function
■With signal output connector
■With remote handling input connector
■With pressure relief connector
■All parameters can be modified according to the need
Range of Application:
Residential filtration system
Swimming pool filtration equipment
Active carbon or sand filter in RO pretreatment filtration system
●Water Pressure------------------------------------------------0.15—0.6MPa
●Water Temperature-------------------------------------------5℃-50℃
●Transformer Output-------------------------------------------DC24V、1.5A
●Water Turbidity------------------------------------------------<20FTU
●Inlet/Outlet-------------------------------------------------------2″M
●Drain--------------------------------------------------------------2″M
●Base---------------------------------------------------------------4″-8UN
●Riser Pipe--------------------------------------------------------1.5 ″D-GB
●Max Flow Rate---------------------------------------------------10 m3/h
●Suitable Tank Size (in)-----------------------------------------16″~24″
Product Characteristics:
■It adopts hermetic head faces with high degree pottery and corrosion resistance for opening and closing.
■No water passes the valve in rinse in single tank type.
■LED dynamic screen display LED.The stripe on dynamic screen flash, it indicates the control valve is in service, otherwise, it is in rinse cycle.
■Having long outage indicator
■It could set up rinsing frequence
■There are two kinds of time clock types: by hours or by days
■Buttons are locked when no operation within 1 minute
■Having interlock function
■With signal output connector
■With remote handling input connector
■With pressure relief connector
■All parameters can be modified according to the need
Range of Application:
Residential filtration system
Swimming pool filtration equipment
Active carbon or sand filter in RO pretreatment filtration system
