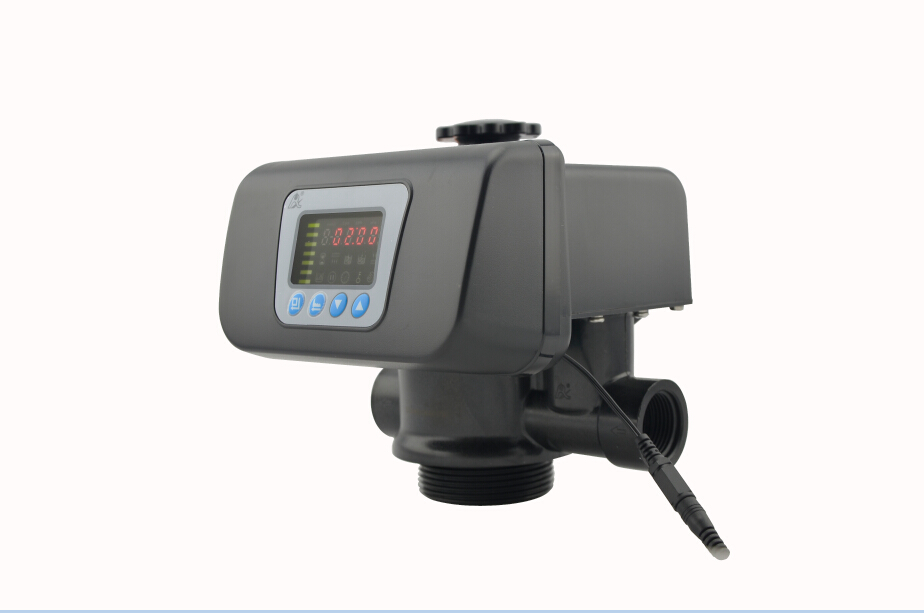

Automatic filter valve
- Product No.:53504S(F67B)
Technical Parameters:
●Water Pressure------------------------------------------------0.15—0.6MPa
●Water Temperature-------------------------------------------5℃-50℃
●Transformer Output-------------------------------------------DC12V、1.5A
●Water Turbidity------------------------------------------------<20FTU
●Inlet/Outlet-------------------------------------------------------1″F
●Drain--------------------------------------------------------------1″F
●Base---------------------------------------------------------------2.5″-8NPSM
●Riser Pipe--------------------------------------------------------1.05 ″OD
●Max Flow Rate---------------------------------------------------4 m3/h
●Suitable Tank Size (in)-----------------------------------------6″~14″
Product Characteristics:
■It adopts hermetic head faces with high degree pottery and corrosion resistance for opening and closing.
■No water passes the valve in rinse in single tank type.
■LED dynamic screen display LED.The stripe on dynamic screen flash, it indicates the control valve is in service, otherwise, it is in rinse cycle.
■Having long outage indicator
■It could set up rinsing frequence
■There are two kinds of time clock types: by hours or by days
■Buttons are locked when no operation within 1 minute
■Having interlock function
■With signal output connector
■With remote handling input connector
■With pressure relief connector
■All parameters can be modified according to the need
●Water Pressure------------------------------------------------0.15—0.6MPa
●Water Temperature-------------------------------------------5℃-50℃
●Transformer Output-------------------------------------------DC12V、1.5A
●Water Turbidity------------------------------------------------<20FTU
●Inlet/Outlet-------------------------------------------------------1″F
●Drain--------------------------------------------------------------1″F
●Base---------------------------------------------------------------2.5″-8NPSM
●Riser Pipe--------------------------------------------------------1.05 ″OD
●Max Flow Rate---------------------------------------------------4 m3/h
●Suitable Tank Size (in)-----------------------------------------6″~14″
Product Characteristics:
■It adopts hermetic head faces with high degree pottery and corrosion resistance for opening and closing.
■No water passes the valve in rinse in single tank type.
■LED dynamic screen display LED.The stripe on dynamic screen flash, it indicates the control valve is in service, otherwise, it is in rinse cycle.
■Having long outage indicator
■It could set up rinsing frequence
■There are two kinds of time clock types: by hours or by days
■Buttons are locked when no operation within 1 minute
■Having interlock function
■With signal output connector
■With remote handling input connector
■With pressure relief connector
■All parameters can be modified according to the need
